Why Transportation & Infrastructure Needs FRP
Infrastructure assets must last decades with minimal maintenance. FRP grating — lightweight, corrosion-proof and non-conductive — serves bridge walkways, rail platforms and roadside maintenance decks where steel and timber fail.- Bridge deck corrosion and de-icing salt attack
- Weight limits on existing structures
- Traffic vibration loosening conventional fixings
- Electrical safety near rail infrastructure
ZeAllgrate Solutions for Transportation & Infrastructure
ZeAllgrate pultruded grating and handrail systems are engineered for infrastructure: high stiffness, fatigue resistance and installation with standard tools on live assets.
Typical Applications
Bridge inspection walkways
Rail station platforms
Highway maintenance decks
Tunnel access walkways
Roadside equipment platforms
Transit facility mezzanines
Project Gallery
Real ZeAllgrate FRP grating products and installations in service across this industry.

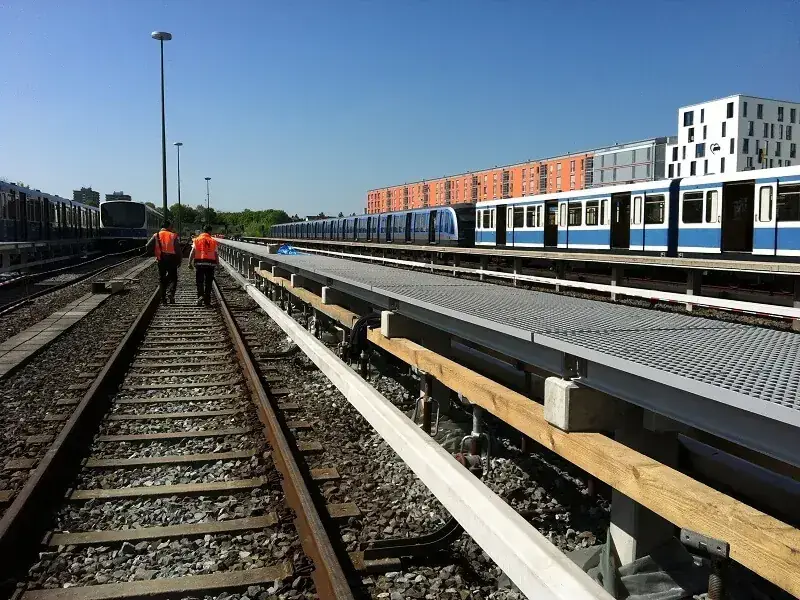

FRP pultruded walkway on a rail transit platform
FRP pultruded profiles for bridge under-deck access

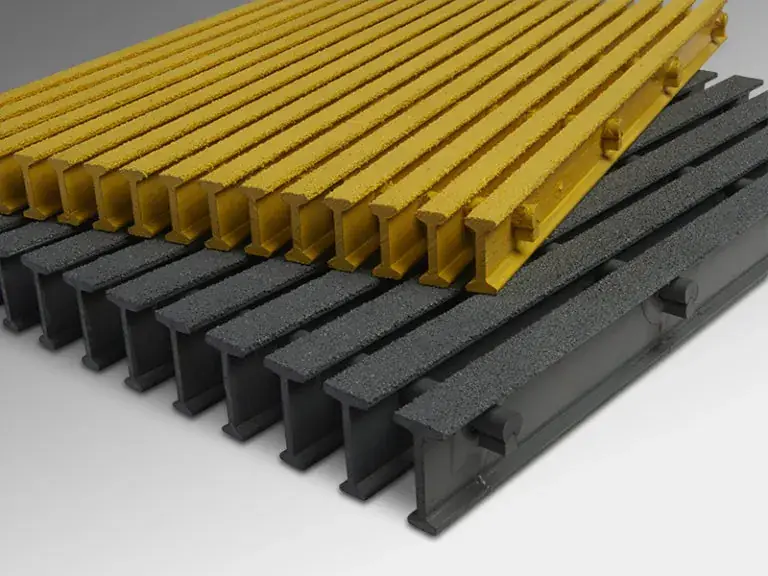

FRP trench grating for roadside infrastructure
Solutions for Every Process Area
Engineered FRP solutions mapped to each stage of your facility — from corrosive process zones to high-traffic access routes.
FRP walkways and under-deck access systems for bridge inspection.
Lightweight, fire-retardant walkways along tunnel walls.
Insulated platforms and cable trough covers in electrified rail.
Access platforms and ladders for gantry and signage structures.
Technical Specifications & Compliance
Application-specific engineering reference for Transportation & Infrastructure — corrosion rating, load criteria, governing codes and the recommended ZeAllgrate configuration. Use this as the specification starting point; final design must be verified against certified load/span charts and the project's governing codes.
| Parameter | Specification for Transportation & Infrastructure |
|---|---|
| Corrosion Level | Medium De-icing salts, road runoff and atmospheric pollution; plus weight limits on aging structures. |
| Typical Load Requirements | Bridge inspection walkways 50 psf (2.4 kN/m²) pedestrian; maintenance-vehicle decks 250 psf (12 kN/m²) or AASHTO lane loads; transit platform edge loads per AREMA. |
| Applicable Standards & Regulations | AASHTO LRFD (bridge design), AREMA (commuter/rail), OSHA 1910.28/1910.29, NFPA 130 (fixed guideway transit/tunnel fire), ISO 14122, local DOT specifications. |
| Recommended Resin System | ZeAll ISO for general bridge & road service; ZeAll FR fire-retardant grade mandatory in tunnels and transit subways; UV-stabilized for exposed structures. |
| Recommended Grating Type | Pultruded I6015/T5020 for under-deck bridge inspection walkways (weight-critical); ZeAll FR pultruded for tunnel service; Molded 38.1 mm for station-platform edge covers. |
Resin systems: ZeAll VE (vinyl ester — severe corrosion), ZeAll ISO (isophthalic polyester — general service), ZeAll FDA (food/potable grade), ZeAll FR (extra flame-retardant), Phenolic (fire/smoke-critical). Grating types: Molded (bi-directional), Pultruded (long-span), Mini-Mesh (fine openings), HLC (high-load capacity).
Transportation Service Requirements
| Requirement | ZeAllgrate Response |
|---|---|
| Heavy / concentrated loads | Pultruded and high-load molded sections |
| Fire performance | E84 class per code for stations and tunnels |
| Wet slip risk | Grit-top on exposed decks and stairs |
| Long-life assets | Decades of service with no paint programme |
Specification Guidance
Transportation infrastructure specifies for load, fire and durability: bridge inspection walkways and station platforms are designed to the deflection-limited load table with the concentrated case checked, the E84 class is confirmed for rated areas, and grit-top handles the wet exposed surfaces. Lightweight panels install over live rail and road corridors with minimal disruption — no hot work, no heavy crane lifts. The case library documents bridge and station walkway installations.
Transportation infrastructure specifies for load, fire and durability: bridge inspection walkways and station platforms are designed to the deflection-limited load table with the concentrated case checked, the E84 class is confirmed for rated areas, and grit-top handles the wet exposed surfaces. Lightweight panels install over live rail and road corridors with minimal disruption — no hot work, no heavy crane lifts. The case library documents bridge and station walkway installations.Go Deeper with the ZeAllgrate Knowledge Base
