Power & Energy
Why Power & Energy Needs FRP
Power plants and substations live with two enemies: corrosion (cooling water, chemicals, coastal salt) and electricity (conductive structures near live equipment). FRP is non-conductive, corrosion-proof and maintenance-free — engineered for the energy sector.- Electrical safety near live equipment
- Cooling tower and water chemistry corrosion
- Coastal salt exposure at power stations
- Maintenance access in hard-to-reach locations
ZeAllgrate Solutions for Power & Energy
ZeAllgrate non-conductive grating, cable tray walkways and handrail systems protect workers and equipment in power generation, transmission and distribution facilities.
Typical Applications
Substation access platforms
Cooling tower decks
Boiler room walkways
Cable tray support systems
Turbine hall platforms
Switchyard access
Project Gallery
Real ZeAllgrate FRP grating products and installations in service across this industry.
FRP trench cover for substation cable runs

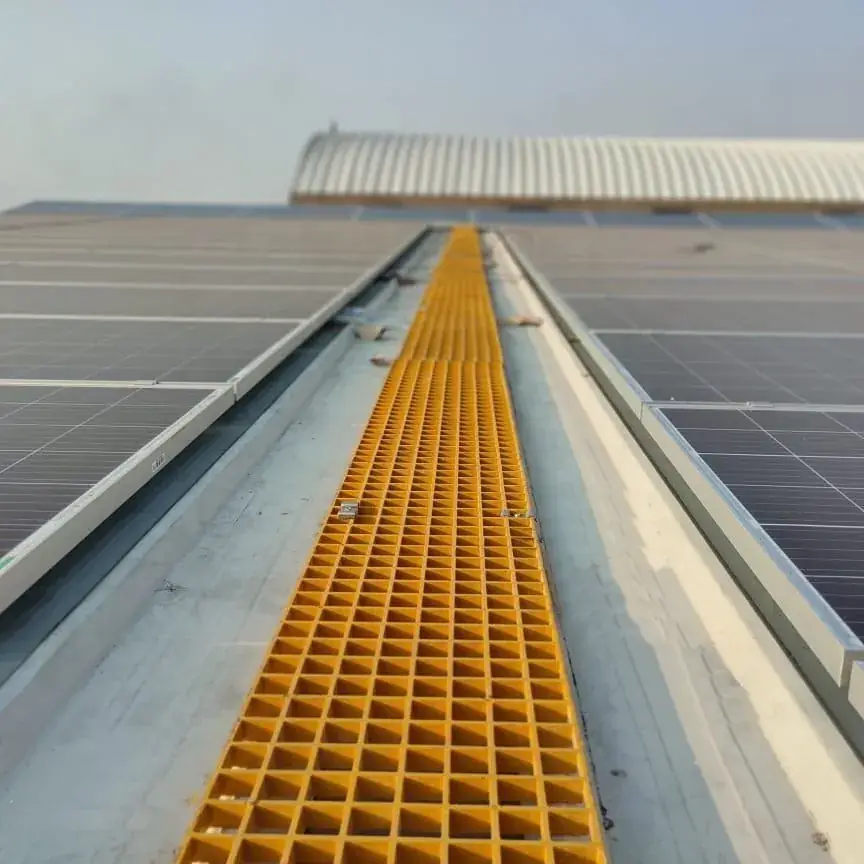

FRP access walkway through a photovoltaic array
Non-conductive FRP stair tower at a power facility
Solutions for Every Process Area
Engineered FRP solutions mapped to each stage of your facility — from corrosive process zones to high-traffic access routes.
Non-conductive access platforms and cable trays in turbine halls.
Heavy-duty covers for cable trenches and duct banks.
Insulating, non-magnetic grating for electrical areas.
Fire-retardant walkways around boilers, stacks and ductwork.
Corrosion-proof walkways and covers for cooling water intakes.
Technical Specifications & Compliance
Application-specific engineering reference for Power & Energy — corrosion rating, load criteria, governing codes and the recommended ZeAllgrate configuration. Use this as the specification starting point; final design must be verified against certified load/span charts and the project's governing codes.
| Parameter | Specification for Power & Energy |
|---|---|
| Corrosion Level | Medium–High Cooling-water chemistry and coastal salt at coastal stations; plus electrical conductivity risk near live gear. |
| Typical Load Requirements | Substation & turbine-hall access 50 psf (2.4 kN/m²); cable-tray & equipment platforms 100 psf (4.8 kN/m²); switchyard access also requires non-magnetic, non-conductive behavior. |
| Applicable Standards & Regulations | OSHA 1910.23 & 1910.29, IEEE (substation grounding & clearances), ANSI C2 (National Electrical Safety Code), ISO 14122, ASTM E84 (boiler/stack areas), NEC Article 314 (wireway covers). |
| Recommended Resin System | ZeAll ISO for general plant; ZeAll VE for cooling-water & coastal exposure; ZeAll FR fire-retardant grade near boilers, turbines and transformers; all grades electrically non-conductive. |
| Recommended Grating Type | Molded 38.1 mm for substation & cable-tray walkways; Pultruded I5020 for long-span turbine-hall platforms; solid covers for cable trenches; non-magnetic reinforcement throughout. |
Resin systems: ZeAll VE (vinyl ester — severe corrosion), ZeAll ISO (isophthalic polyester — general service), ZeAll FDA (food/potable grade), ZeAll FR (extra flame-retardant), Phenolic (fire/smoke-critical). Grating types: Molded (bi-directional), Pultruded (long-span), Mini-Mesh (fine openings), HLC (high-load capacity).
Typical System Configuration
A non-conductive FRP access package for a power station — isophthalic grating over cooling-tower / cooling-water areas, vinyl ester near transformers and switchgear, with FRP clips where full electrical isolation is required. The defining selection criterion is dielectric integrity near live equipment, not just corrosion.
Component List
| Component | Product / Model | Material / Resin | Key Spec | Quantity / Ratio |
|---|---|---|---|---|
| Grating panels | ZeAllgrate Molded 38mm | ZeAll ISO (cooling tower) / ZeAll VE (transformer), concave + grit-top | 38.1 mm thick, ~70% open, non-conductive | Substation, cooling-tower and transformer walkways |
| Handrail system | ZeAll ISO / VE tube handrail | ZeAll ISO/VE tubes, SS304 fittings | 42.4 mm posts, mid-rail, toeboard | Perimeter and open edges |
| Support structure | Pultruded profiles | ZeAll ISO / VE | Non-conductive structural members | Long-span supports |
| Clips & fasteners | FRP clips (transformer) / SS304 clips (cooling tower) | FRP composite / SS304 | FRP clips for full electrical insulation | 2 clips per panel |
| Edge banding | FRP edge banding | ZeAll ISO / VE, dielectric | 3 mm protective trim | Panel perimeter |
Design Parameters Summary
| Design Parameter | Value for Power & Energy |
|---|---|
| Load rating | Pedestrian 3.0–3.5 kN/m² (~63–73 psf) |
| Span | 0.9–1.0 m panel span |
| Deflection limit | L/150 under design load |
| Resin selection rationale | Isophthalic (ZeAll ISO) for cooling tower UV/humidity; vinyl ester (ZeAll VE) for transformer chemical + dielectric duty |
| Surface type | Concave + grit-top for anti-slip access |
| Fastener material | FRP clips for full electrical insulation; dielectric strength > 10 kV/mm |
Applicable Standards & Codes
- OSHA 1910.23 / 1910.29 (ladders & guardrails)
- ISO 14122-1/-2/-3/-4 (permanent machinery access)
- ASTM D495 / D149 (arc resistance and dielectric strength)
- IEEE C2 (National Electrical Safety Code / NESC)
- NFPA 70E (electrical safety in the workplace)
In a power station the dominant risk is touching live gear through a conductive floor, so the system is engineered around electrical isolation first. FRP clips replace stainless hardware in transformer and switchyard zones to preserve a continuous insulating path, and dielectric strength is specified above 10 kV/mm rather than assumed. Resin is then matched to chemistry: isophthalic holds up in the perpetually wet, UV-exposed cooling tower, while vinyl ester is chosen where transformer oil, cleaning solvents and higher dielectric demand meet. Pultruded non-conductive profiles carry the long spans without introducing any metal cross-bridge.
Power & Energy Service Requirements
| Requirement | ZeAllgrate Response |
|---|---|
| Electrical insulation | Non-conductive grating near live equipment |
| Cooling tower service | Vinyl ester + UV-stabilised grades |
| Fire performance | E84 Class A/B/C per code for rated areas |
| Boiler / turbine access | Heat- and corrosion-resistant platforms |
Specification Guidance
Power plants value FRP for the electrical insulation: substation and switchyard decks need no earthing burden, and cooling tower zones get vinyl ester and UV-stabilised construction for the chlorinated water and sun exposure. Confirm the E84 class for rated areas, design the access decks to the load and deflection table, and use SS316 hardware in the wet zones. The lightweight panels install quickly on existing steel without hot work.
Power plants value FRP for the electrical insulation: substation and switchyard decks need no earthing burden, and cooling tower zones get vinyl ester and UV-stabilised construction for the chlorinated water and sun exposure. Confirm the E84 class for rated areas, design the access decks to the load and deflection table, and use SS316 hardware in the wet zones. The lightweight panels install quickly on existing steel without hot work.Go Deeper with the ZeAllgrate Knowledge Base
