Pharmaceutical
Why Pharmaceutical Needs FRP
Pharmaceutical manufacturing demands materials that never shed particles, resist aggressive cleaning agents and maintain a sterile-friendly surface. FRP grating delivers — non-shedding, chemically inert, and easy to sanitize.- GMP compliance for contact surfaces
- Aggressive CIP/SIP cleaning chemicals
- Particle shedding from painted steel
- Corrosion in utility and utility-adjacent areas
ZeAllgrate Solutions for Pharmaceutical
ZeAllgrate supplies smooth-surface molded grating and covered systems for GMP facilities, with resins selected for compatibility with cleanroom and sanitization protocols.
Typical Applications
Cleanroom mezzanine platforms
Utility corridor walkways
Process equipment platforms
Drainage & trench covers
HVAC equipment access
Warehouse mezzanines
Project Gallery
Real ZeAllgrate FRP grating products and installations in service across this industry.

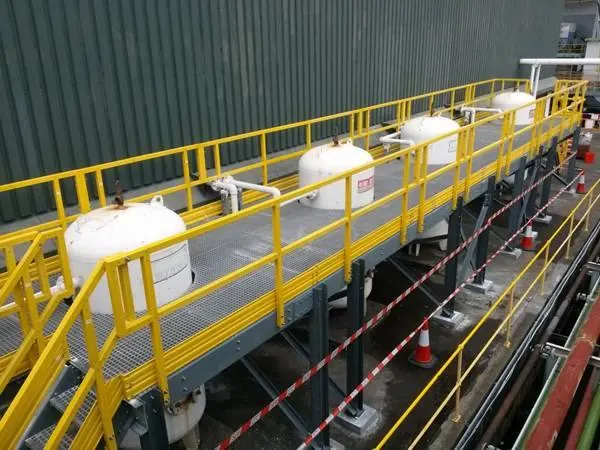

FRP access platform above pharmaceutical process tanks

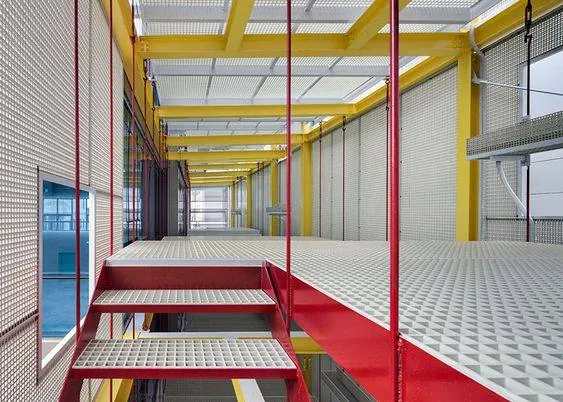

FRP platform walkway for cleanroom mezzanine access

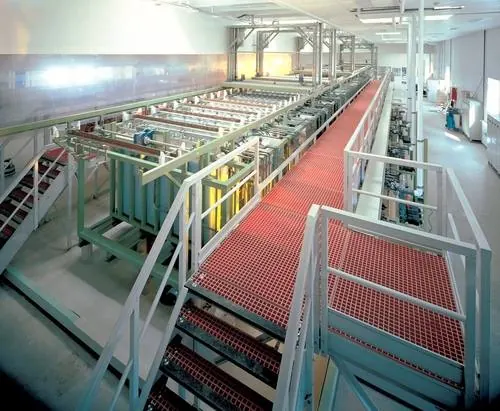

FRP grating access walkway beside pharma production line
Solutions for Every Process Area
Engineered FRP solutions mapped to each stage of your facility — from corrosive process zones to high-traffic access routes.
Low-particulate, non-shedding FRP platforms for classified areas.
Vinyl-ester platforms resisting solvents and aggressive cleaning agents.
Maintenance platforms and catwalks over HVAC plant and mechanical services.
Lightweight mezzanine floors and rack-access platforms for storage areas.
Technical Specifications & Compliance
Application-specific engineering reference for Pharmaceutical — corrosion rating, load criteria, governing codes and the recommended ZeAllgrate configuration. Use this as the specification starting point; final design must be verified against certified load/span charts and the project's governing codes.
| Parameter | Specification for Pharmaceutical |
|---|---|
| Corrosion Level | Medium–High Aggressive CIP/SIP cleaning agents, solvent vapors in processing zones, and particle-shedding limits in GMP areas. |
| Typical Load Requirements | Cleanroom/mezzanine pedestrian 50–75 psf (2.4–3.6 kN/m²); utility & equipment platforms 100 psf (4.8 kN/m²); point loads for skids and carts. |
| Applicable Standards & Regulations | FDA 21 CFR Parts 210/211 (cGMP), EU GMP Annex 1 (sterile manufacture), ISO 14644 (cleanroom classification), USP <87>/<88> (where extractables matter), OSHA 1910.22. |
| Recommended Resin System | ZeAll FDA smooth, non-shedding grade for classified areas; ZeAll VE for solvent & aggressive CIP zones; all surfaces must be cleanable and low-particulate. |
| Recommended Grating Type | Molded 38.1 mm covered/smooth-top for cleanroom mezzanines; Pultruded structural profiles for utility corridors; avoid open mesh in Grade A/B areas — specify solid covers. |
Resin systems: ZeAll VE (vinyl ester — severe corrosion), ZeAll ISO (isophthalic polyester — general service), ZeAll FDA (food/potable grade), ZeAll FR (extra flame-retardant), Phenolic (fire/smoke-critical). Grating types: Molded (bi-directional), Pultruded (long-span), Mini-Mesh (fine openings), HLC (high-load capacity).
Pharma Service Requirements
| Requirement | ZeAllgrate Response |
|---|---|
| Cleanroom & controlled areas | Non-conductive, low-shedding construction |
| Cleaning / sanitising chemistry | Resin matched to the cleaning list |
| Corrosive utilities | Vinyl ester for acid and solvent contact |
| Slip resistance | Grit-top on wet processing platforms |
Specification Guidance
Pharma platforms combine cleanroom discipline with corrosive utilities: specify non-conductive grating for equipment and mezzanine platforms, smooth covered surfaces where low shedding matters, vinyl ester where acids and solvents store or flow, and grit-top on the wet washdown decks. Verify the cleaning and sanitising chemicals against the resin chart — a single incompatible sanitiser can shorten panel life. The case library documents a pharma cleanroom HVAC platform installation.
Pharma platforms combine cleanroom discipline with corrosive utilities: specify non-conductive grating for equipment and mezzanine platforms, smooth covered surfaces where low shedding matters, vinyl ester where acids and solvents store or flow, and grit-top on the wet washdown decks. Verify the cleaning and sanitising chemicals against the resin chart — a single incompatible sanitiser can shorten panel life. The case library documents a pharma cleanroom HVAC platform installation.Go Deeper with the ZeAllgrate Knowledge Base
