View/Instance |
Type |
Size（mm） |
Weight （kg/m） |
 |

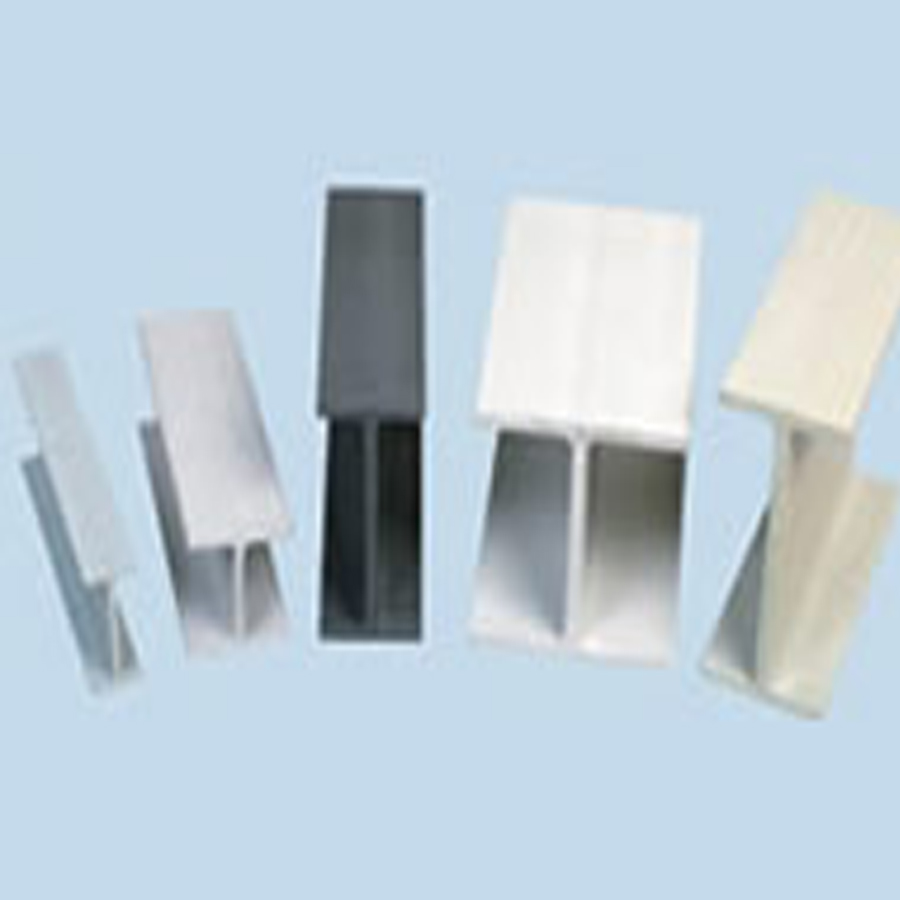

H Beam |

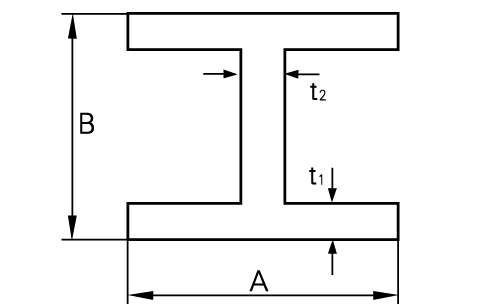

A× B× T1×T2 |
|
|
HB76 |
76×76×6.4×6.4 |
2.67 |
|
HB102A |
102×102×6.4×6.4 |
3.59 |
|
HB102B |
102×102×8.0×8.0 |
4.50 |
|
HB152A |
152×152×6.4×6.4 |
5.43 |
|
H Beam |
HB152B |
152×152×9.5×9.5 |
8.10 |
 |
HB203A |
203×203×9.5×9.5 |
10.80 |
|
HB203B |
203×203×12.7×12.7 |
14.36 |
|
HB203C |
203×203×6.4×6.4 |
7.50 |
|
HB254A |
254×254×9.5×9.5 |
13.60 |
|
HB254B |
254×254×12.7×12.7 |
18.04 |
|
HB305 |
305×305×12.7×12.7 |
21.50 |
|
|
