Thickness
(mm) |
Bar Thickness
(Top/Bottom) |
Mesh Size
(mm) |
Panel Size
(mm) |
Weight
(kg/m2) |
Open Rate
(%) |
|
15 |
6.0/5.0 |
50×50 |
1220×4000,1220×3660,1220×2440 |
5.9 |
82 |
|
40 |
6.8/5.0 |
50×50 |
1787×4530,1225×4530 |
18.2 |
80 |
|
25 |
7.0/6.0 |
50×50 |
1220×3660,1220×2440,915×3050 |
11.5 |
78 |
|
50 |
8.0/6.0 |
50×50 |
524×4000,1220×3660,1220×2440,
1220×4000,915×3050,1532×4020 |
23.7 |
78 |
|
63 |
8.3/6.0 |
50×50 |
1225×4000,1225×3660,1225×2440,
915×3050 |
28.8 |
78 |
|
|

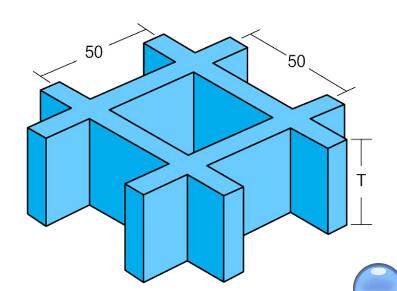

FRP Molded Grating
