hickness(mm) |
Bar Thickness
(Top/Bottom) |
Mesh Size(mm) |
Panel Size(mm) |
Weight(kg/m2) |
Open Rate(%) |
|
13 |
6.0/5.0 |

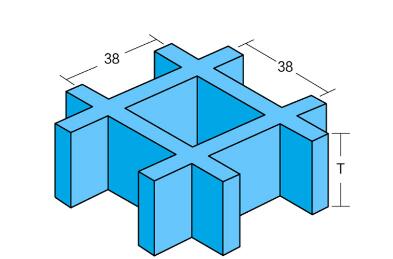

38×38 |
1220×3660,1220×4000,1220×2440，
915×3050,1268×4010 |
6.0 |
78 |
|
14 |
6.0/5.0 |
38×38 |
1220×3660,1220×4000,1220×2440，
915×3050,1264×4010 |
6.5 |
78 |
|
20 |
6.0/5.0 |
38×38 |
1220×3660,1220×4000,
1524×4010,997×3012 |
9.8 |
65 |
|
25 |
6.0/5.0 |
38×38 |
1220×3660,1226×4010,1532×4010，
915×3050,1524×4000,997×3012 |
12.3 |
68 |
|
30 |
6.0/5.0 |
38×38 |
1220×3660,1220×4010,915×3050,
1524×4010 |
14.6 |
68 |
|
38 |
7.0/5.0 |
38×38 |
1220×3660，1220×4010, 1524×4038,
2100×4010,998×4010,1220×2440,
915×3050,1532×4010,1532×3050,
1000×4000 |
19.5 |
68 |
|
50 |
9.5/7.5
Heavy Duty |
38×38 |
1220×4010,1220×3660,1230×4010,
1220×2440, 915×3050 |
42 |
56 |
|
60 |
10.5/8.5
Heavy Duty |
38×38 |
1230×4010 |
50.4 |
54 |
|
70 |
11.0/9.0
Heavy Duty |
38×38 |
1230×4010 |
58.8 |
49 |
|
|
FRP Molded Grating
